Multi Functional Microscope

Multi Functional Microscope by Reflecta Laboratories offer the following technical Specifications: *Please note: Microscopes may take up to 7-10 business days to deliver upon ordering
Model | Choose an optionBMM-1000 Multi Functional Binocular MicroscopeBMM-2000 Multi Functional Binocular MicroscopeClear
• Optical System: Infinite optical system
• Viewing Head: Siedentopf hinged binocular viewing head, inclined at 30°, 360° rotatable, Interpupillary 48~75mm
• Eyepiece: WF10×/18, P16×/11, WF10×/20, WF15×/16
• Objective: Achromatic objective 4×,10×,40×,100×, Plan achromatic objective 4×,10×,40×,100×, Infinite plan achromatic objective 20×,60×, Infinite plan achromatic objective 4×,10×,40×,100×
• Nosepiece: Quadruple nosepiece, Backward quadruple nosepiece, Backward quintuple nosepiece
• Focusing: Coaxial coarse & fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 20mm
• Stage: Double layers mechanical stage: 132*142mm, moving range:75*40mm, Rectangular 230*150mm stage, moving range:78*54mm, using low-positioned X/ Y coaxial control knob
• Condenser: Abbe condenser NA1.25 with aperture diaphragm
• Illumination: S-LED Illumination, brightness adjustable, 12V/ 20W Halogen lamp, brightness adjustable, Kohler illumination
• Power Supply: 110~220V, 50/60Hz
• Accessories: Photo attachment, video attachment, Dark field condensor, Polarization set, phase contrast kit
• Package Size: 323*264*440(BMM-1000), 380*260*510(BMM-2000)
• Gross Weight: 6.5kg(BMM-1000), 10kg(BMM-2000)
Please note: Microscopes may take up to 7-10 business days to deliver upon ordering

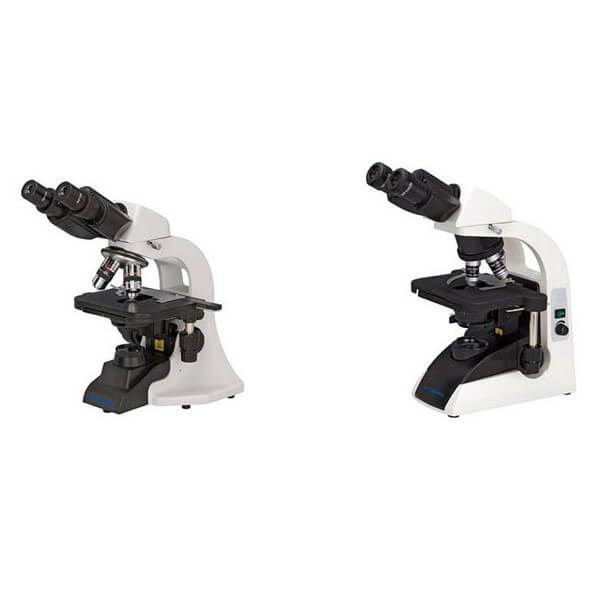

• BMM-1000 Multi Functional Binocular Microscope
• BMM-2000 Multi Functional Binocular Microscope
• Infinite optical system
• Siedentopf hinged binocular viewing head
• Coaxial coarse & fine adjustment
• Double layers mechanical stage
• Abbe condenser NA1.25 with aperture diaphragm
• S-LED Illumination, brightness adjustable
• 110~220V, 50/60Hz power supply
