Name: Portable LED screen ultrasound
SKU: 122326
Availability: InStock

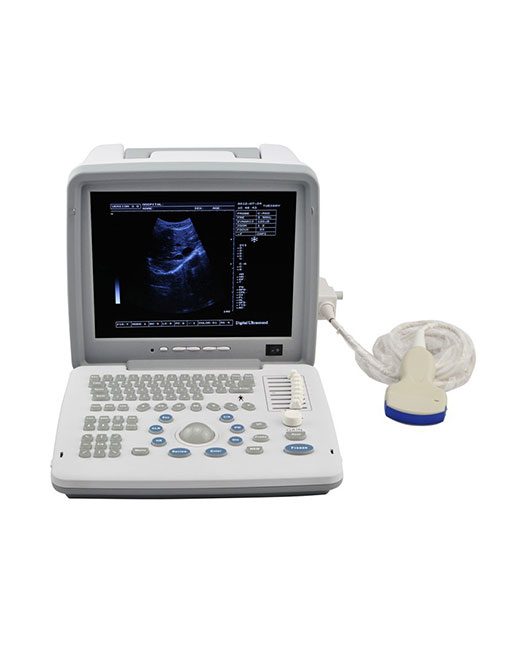

Portable LED screen ultrasound

XF300 (LED) B ultrasound diagnose medical instrument

The fully digital ultrasound image diagnostic equipment,

Free DHL/FEDEX shipping USG, ultrasound scanner, laptop portable ultrasound machine price, laptop echo machine with any one probe

Standard configuration	12in LCD screen main unit with one probe
	user’s manual
	USB,VGA,VIDO Print port
	two probe sockets
	18 months warranty
	110-240 voltage
	Automatic patient’s report
	M, B/M, BB, 4B, B mode
Optional	convex array probe
	trans-vaginal probe
	high fequency linear probe
	micro-convex array probe

Main features	Excellent value for money Full digital imaging technology DBF: Digital Beam Forming RDA: Real-time dynamic aperture imaging DRA: Dynamic real-time acoustic apodizer DRF: Dynamic receiving focus DFS: Dynamic frequency scanning Ensure that the image is not distorted, edge clearer, level richer Humanized operating design 8 sections TGC gain adjustment With abundant built-in software packages Comprehensive software measurement capabilities, to allow more extensive clinical application Two probe/three probeconnectors (optional) Probe connected with a variety of choice to achieve maximum functionality VLSI, advanced technology, stable performance Reasonable cost control, to achieve the perfect embodiment of price and performance
Specifications	Image mode: B, B/B, 4B, B+M, M Image magnification: 0.8, 1.0, 1.2, 1.5, 1.8, 2.0 Local zoom: 2 times local zoom in real time Dynamic range: 64dB – 96dB adjustable Focus: 4-segments dynamic electronic focuses selected Gray scale: 256 Pre-processing: variable aperture, image direction, dynamic filter, edge enhancement, etc. Post-processing: digital space time filter, 8 y corrections, 16 Pseudo Colors, column correlation, frame correlation, spot correlation, linear interpolation, etc. Multi-frequency: 2.5MHz/3.0MHz/3.5MHz/4.0MHz etc. Multi-frequency selected Measurement: distance, circumference/acreage, HR, pregnancy week (BPD, GS,CRL,FL, AC) and calculating fetus weight, etc. Annotation: Chinese/English interface transition; hospital name, doctors/patients name, case number, gender, age; 16 body marks with probe location, full screen character annotation, real time clock display Puncture lead: Image B: Puncture guide line under B mode Gain adjustment: 8-segments TGC adjustment, GAIN adjustment or near field, far field, overall gain adjustable Image reverse: left/right, black/white, up/down Storage: 128 images permanent storage Cine loop: 256 images real time display cycling/one-by-one checked Output interface: 2 SVGA video outputs, SVGA color monitor circumscribed; 2 PAL video outputs, which can be connected with PAL standard monitor, Video thermal recorder, ultrasound image workstation, etc. Optional features: multiple probes connectable, USB port, Video thermal recorder Probe connectors: 2 socket, multiple probes connectable

Standard	Main unit 60R/3.5MHZ Convex array probe USB 2.0, VGA port Video connector
