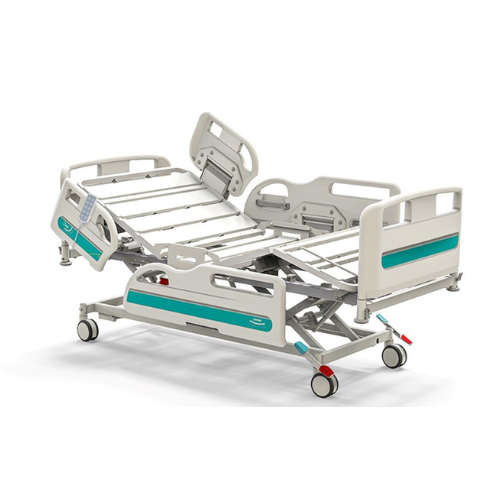

SKD-C Electric bed Y8Y

SKD-C Electric bed Y8Y

SKD-C Electric bed Y8Y

SKD-C Electric bed five functions
★Double auto-regression function for bed platform
★Super-low bed position 350mm
★PP bed platform, Removable & washable
★Inserted-type PP head foot board, one step quick release with patent safe lock
★PP safety guardrail with two steps unlocking system, patent design

Technical Parameters:
►External Size (LxWxH): 2130x1050x(360-780)mm
►Mattress Platform: 1925x880mm
►Safe Working Load: 250kg
►Back-rest Adjustment: 0-75°(±10°)
►Knee-rest Adjustment: 0-35°(±10°)
►Reverse Trendelenburg: 0-16°
►Trendelenburg: 0-16°
►Angle Indicator for back rest and trendelenburg

Technical Configuration:
►Linear Motor: 4 pcs
►5″ Double Side Castors, Central Locking System: 4 pcs
►ABS Oasis Side Rail Extra Height, with nurse control panel: 1 set
►ABS Oasis Bed Ends with Safe Lock: 1 set
►PP Bed Platform, Removable & Washable: 9 pcs
►Plastic Socket Inside PP Guardrail for Phone or Glasses: 2 pcs
►Patent Angle Indicator For Back-rest And Trendelenburg Position: 4 pcs
►φ70mm Wall Bumper Wheel: 4 pcs
►IV Pole: 1set
►IV Pole Prevision: 4 pcs
►Drainage Hook: 2 pcs
►Central Locking Pedal: 2 pcs
►Manual CPR
►ABS Mattress Stopper: 2 pcs
►With hook type nurse control panel at foot end:1 pc
►Hand controller
►Back up battery
►Emergency Stop Button
►Cardiac Chair Position
►Monkey Pole
