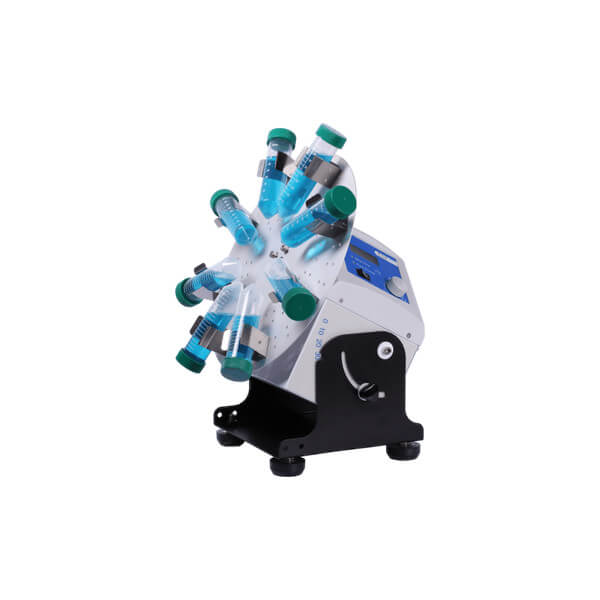

Digital Disk Rotator

Digital Disk Rotator analogue tube disk rotator has a cost effective and ergonomic design that is perfect for all laboratory applications that require gentle tube mixing. The Digital Disk Rotator can mix a variety of tubes including 48 x 1.5ml Eppendorf tubes, 16 x 15 ml or 8 x 50 ml centrifuge tubes. The Digital Disk Rotator disk tube rotator is ideal for mixing blood samples to avoid coagulation, keeping biological samples in suspension and aerating cultures. Variable speed means that the aggressiveness of the mixing can be adjusted for a specific application.

• Type of Movement: Rotating
• Permissible Shaking Weight [kg]: 2
• Power [W]: 40
• Motor Type: Brushless DC
• Speed Range [rpm]: 10 – 70
• Speed Display: LCD
• Turntable Tilt Angle [°]: 0 – 90
• Turntable Stackable: Yes
• Timer: Yes
• Timer Display: LCD
• Timer Setting Range [min]: 1 – 1199
• Operation Type: Continuous / Timed
• Protection Class Acc. to DIN EN 60529: IP 21
• RS232 Computer Interface: No
• Dimensions (W x H x D) [mm]: 210 x 300 x 280
• Weight [kg]: 8
• Housing Material: ABS + Mild Steel
• Rotor Material: Aluminium
• Clips Material: Stainless Steel
• Permissible Ambient Temperature [°C]: 5 – 40
• Permissible Relative Humidity [%]: 80
• Voltage [V AC]: 100 – 240
• Frequency [Hz]: 50/60

• Comes standard with rotating disk and 8 x 50ml centrifuge tube clamps. Additional sizes available as optional extras
• Digital speed control
• Speed range adjustable between 10 and 70 rpm
• Suitable for continuous or timed operation
• Timed Operation from 1 to 1199 minutes
• Speed and timer displayed on LCD screen
• Rotary / Mixing angle adjustable between 0 and 90 ̊
• Stackable Disks for double tube holding
• Optional extra accessories allow for 60 x 1.5 ml and 16 x 15 ml tube mixing
• Gentle circular rotating movement provides efficient mixing capabilities
• Suitable for cold rooms and incubators between 5 and 40 °C
• CE Certified
• 2 Year Warranty
